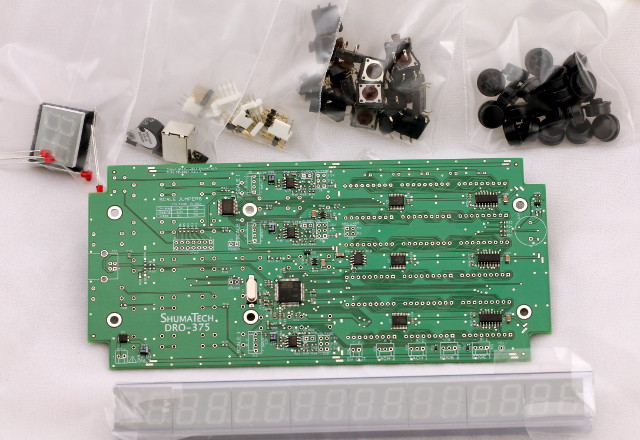

DRO-375 PCB Kit (Red LED)
$119.95
SKU: 99-0032
The DRO-375 PCB kit includes the following comonents:
- DRO-375 PCB with all surface mount components installed on a professional assembly line
- All through-hole components needed to complete the PCB:
| Quantity | Description |
| 23 | Round switch cap, black, 12mm |
| 23 | Switch, 12mm tact |
| 2 | MTA-100 2 pin header |
| 4 | MTA-100 3 pin header |
| 3 | MTA-100 4 pin header |
| 3 | 2x3 pin .100 header |
| 3 | 2 pin .100 header |
| 1 | Piezo buzzer, 4kHz, 5V, 14mm |
| 3 | Shunt jumper, 2 position |
| 9 | LED 7-segment, RED, dual digit |
| 5 | LED diffused, RED, 3mm |
| 1 | Tact switch, 6mm, 5mm plunger |
| 1 | USB connector, type B |
To complete your DRO-375, you will need an overlay, enclosure, power supply, cables, and scales. See the Enclosure Parts section on the bill of materials for a list of these needed components.
Price: $119.95
Sorry, this item is out of stock
