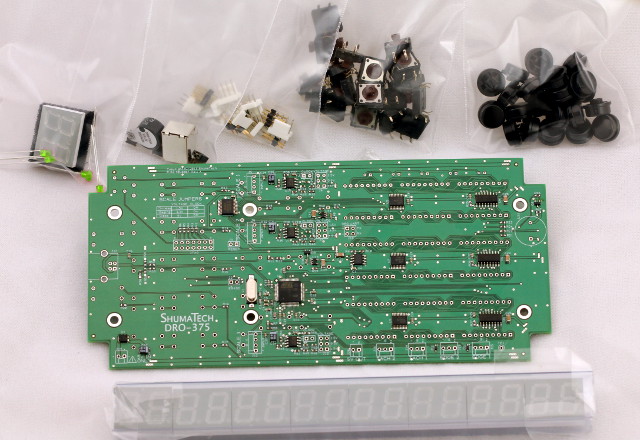

DRO-375 PCB Kit (Green LED)

SKU: 99-0033

The DRO-375 PCB kit includes the following comonents:

  • DRO-375 PCB with all surface mount components installed on a professional assembly line
  • All through-hole components needed to complete the PCB:
Quantity Description
23 Round switch cap, black, 12mm
23 Switch, 12mm tact
2 MTA-100 2 pin header
4 MTA-100 3 pin header
3 MTA-100 4 pin header
3 2x3 pin .100 header
3 2 pin .100 header
1 Piezo buzzer, 4kHz, 5V, 14mm
3 Shunt jumper, 2 position
9 LED 7-segment, GREEN, dual digit
5 LED diffused, GREEN, 3mm
1 Tact switch, 6mm, 5mm plunger
1 USB connector, type B

To complete your DRO-375, you will need an overlay, enclosure, power supply, cables, and scales.  See the Enclosure Parts section on the bill of materials for a list of these needed components.

Price: $119.95
Sorry, this item is out of stock
