LCD-200 Complete Kit
$74.95
SKU: 99-0018
NOTE: This kit already includes the LCD-200 PCB and Overlay so you do not need to order them separately.

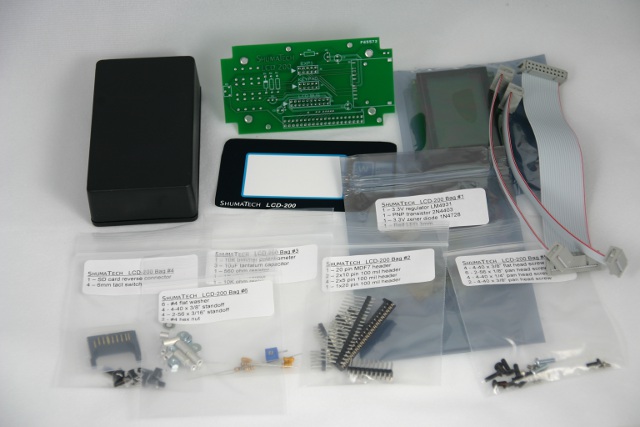

This kit includes everything you will need to build a complete LCD-200 secondary display for your DRO-550. This includes the circuit board, overlay, 128x64 graphical LCD display, headers, cables, enclosure, electronic components, and hardware. A complete list of what is included in this kit is shown below.
| Quantity |
Component |
| 1 | LCD-200 PCB |
| 1 | LCD-200 Overlay |
| 1 | 128x64 LCD |
| 1 | 20 pin MDF7 header |
| 1 | 3.3V regulator |
| 1 | 10K trimmer resistor |
| 1 | PNP transistor |
| 1 | Plastic case |
| 3 | 10uF tantalum capacitor |
| 1 | 3.3V zener diode |
| 1 | SD card reverse |
| 4 | Tact switch 12.5mm |
| 1 | 560 ohm resistor |
| 1 | 1K ohm resistor |
| 1 | 10K ohm resistor |
| 1 | Red LED 3mm |
| 2 | 2X10 20P Header 0.100 0.230 |
| 4 | 2X5 10P Header 0.100 0.230 |
| 1 | 1X20 20P Header 0.100 0.500 |
| 2 | IDC Ribbon Cable 2x5 10P |
| 1 | IDC Ribbon Cable 2x10 20P |
| 4 | Flat head screw, 4-40 x 3/8" black ox |
| 6 | Pan head screw, 2-56 x 1/8" |
| 4 | Pan head screw, 4-40 x 1/4" |
| 2 | Pan head screw, 4-40 x 3/8" |
| 2 | Hex nut, #4 |
| 6 | Flat washer, #4 |
| 4 | Standoff round 4-40 threaded 3/8" |
| 4 | Standoff round 2-56 threaded 3/16" |
Price: $74.95
Sorry, this item is out of stock
