LCD-200 Construction



Step 1. Parts Inventory

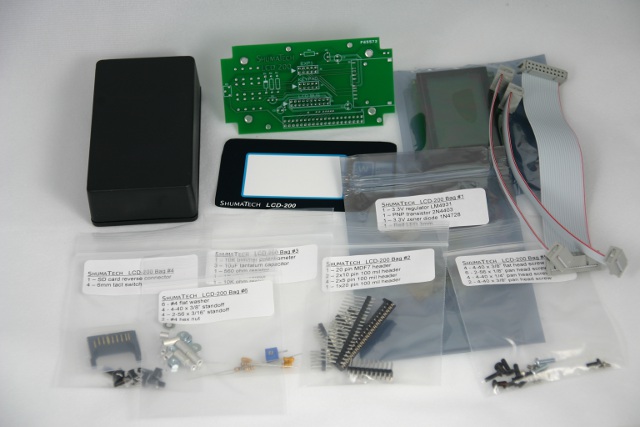

Take inventory of your parts to make sure that you have everything you need to finish the assembly.  If you bought the LCD-200 kit, it will have everything you need.  The table below lists the quantities and descriptions of the parts in the LCD-200 kit and a picture of it is shown on the left.  You can click on this or any other picture to get a larger view of it.

 Quantity Component
1 LCD-200 printed circuit board
1 LCD-200 graphic overlay
1 Graphic LCD module
1 Black plastic case
2 10 pin ribbon cable
1 20 pin ribbon cable
1 Parts bag #1 (semiconductors)
1 Parts bag #2 (headers)
1 Parts bag #3 (passives)
1 Parts bag #4 (electromech)
1 Parts bag #5 (screws)
1 Parts bag #6 (hardware)

 You will also need some tools and supplies to finish assembling the circuit board.  These include:

  • Soldering Iron - Just about any soldering iron will do but make sure it has a fairly fine point.
  • Solder - 63/37 or 60/40 flux core solder with a diameter between 0.015" and 0.030" is best.  You can use lead free solder but it is a more difficult to work with.  You can also use larger diameter solder in a pinch but it is harder to control the amount of solder applied with larger diameters.
  • Solder Wick - We all make mistakes and you'll want to have some of this handy stuff available when your soldering goes awry.  Solder wick is a wire braid impregnated with flux that, when pressed against a solder connection with a soldering iron, wicks the solder up into braid.  It is invaluable for desoldering a bad connection or removing excess solder.
  • Antistatic Wrist Strap - Since we are working with static sensitive components, you should wear an antistatic wrist strap at all times while handling the boards and components.  You should also try to work in a non-carpeted area that is as free from static as possible.
  • Flux - This is not strictly needed since solder already contains flux, but it is sometimes handy to apply extra flux directly to a stubborn or dirty connection.  Rosin flux is the most popular type but there are a variety of other formulations available including "no clean" types.  If you get too much flux on the board, it is best to clean it off with a Q-tip dipped in rubbing alcohol because some types of flux can be corrosive.
  • Magnifying Glass - Let's face it, modern electronic components are small and can be difficult to see with the naked eye.  A magnifying glass will not only help you inspect your soldering work, but it will also help when we visually inspect the board.
  • Multimeter - You will need a multimeter for testing and troubleshooting the board.  Just about any multimeter will do and you will only need the DC voltage and resistance measurements.
